Access Control

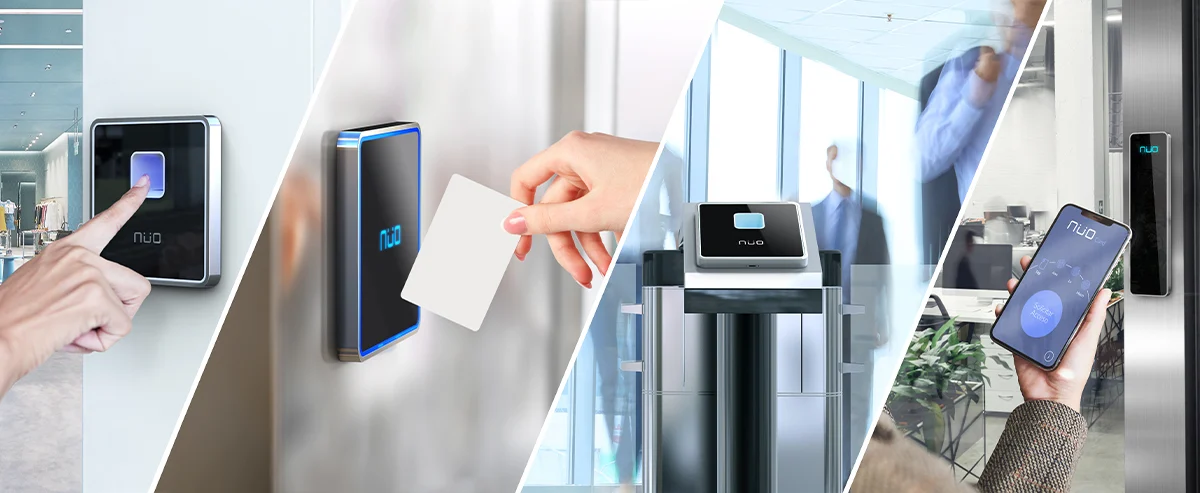

Access Control are integrated physical security systems that authorize, log, and restrict passage of people/vehicles to buildings, rooms, and restricted areas using biometric, card, mobile, and PIN credentials. They ensure regulatory compliance, total audit, and intrusion response. Global market: $18 billion in 2025 (MarketsandMarkets).Main Types of Access ControlClassified by technology and application:

Type
Technology
Response Time
Cost per Door
Ideal Use
RFID Cards
MIFARE, EM4100
<1s
$50-150
Corporate buildings
Biometric
Fingerprint, facial, iris, vein
<0.5s
$300-1000
High security, data centers

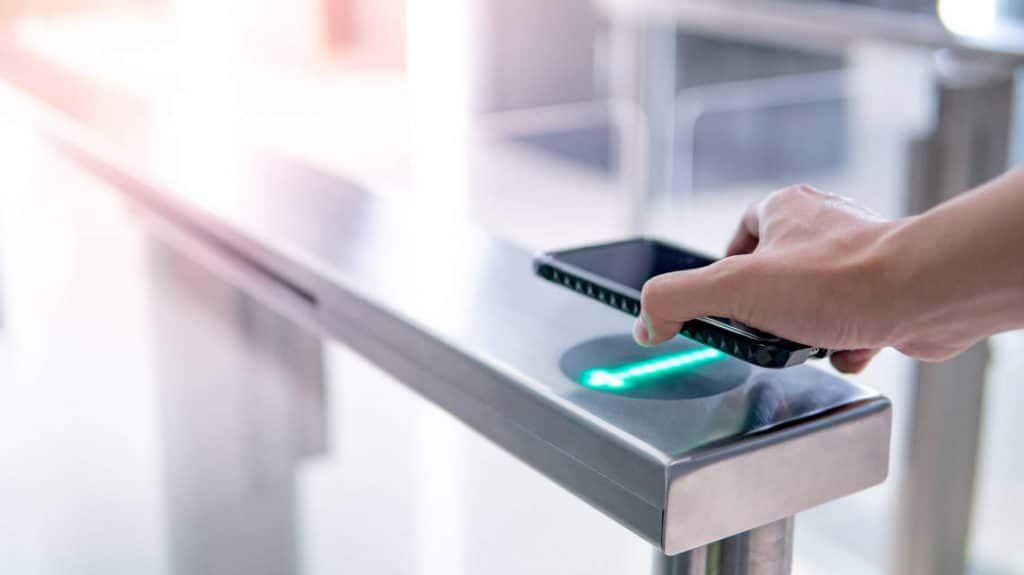

Mobile/Bluetooth
NFC, BLE, Apple Wallet
<1s
$100-300
Modern offices, coworking
PIN/Keypad
Numeric keypad
<1s
$30-100
Low cost, residential
Long Range
UHF 433MHz, 10-50m
<0.3s
$500-2000
Parking lots, industrial gates
Multi-Factor
Bio + PIN + Mobile
<1s
$500-1500
Banks, government

Key Technologies

Technology
Standard
Max Range
Advantages
MIFARE DESFire
ISO 14443
5cm
AES128 encryption, anti-cloning
BLE 5.0
Bluetooth Low Energy
10m
Mobile Tap & Go, geofencing
3D Facial
IR + RGB
1-3m
99.99% accuracy, anti-spoofing
Vein Pattern
Infrared
5cm
100% unique, touchless
PoE/IP
IEEE 802.3af/at
100m
Single cable: data + power

Typical System Components

ENTERPRISE ARCHITECTURE (1000+ Doors)
├── Controllers: 2-door PoE IP (2Wiegand)
├── Readers: Multi-tech (RFID + BLE + PIN)
├── Locks: Electric/magnetic 500kg
├── Software: Cloud/On-premise VMS
├── Database: 10M+ credentials
└── Integration: CCTV, Alarms, HVAC

Protocols and Standards

Standard
Function
Compliance
Wiegand 26/34
Reader-controller communication
Universal legacy
OSDP v2
Encrypted + bidirectional
Anti-tampering, future-proof
ONVIF Access
IP interoperability
Axis, HID, Paxton
FIPS 201
PIV/Government cards
National security

Leading Providers

Category
Top Brands
Strengths
Enterprise
HID Global, LenelS2, Genetec
100K+ door scalability
Biometric
Suprema, ZKTeco, IDEMIA
AI anti-spoofing, multi-modal
Cloud
Brivo, Kisi, Swiftlane
Zero hardware, mobile-first
Hardware
ASSA ABLOY, Allegion, dormakaba
High-security locks

Typical 2025 Specs (500 Door System)

Controllers: IP PoE, OSDP v2 encrypted
Readers: Multi-tech BLE + Facial 99.99%
Database: 5M users, 10 years logs
Throughput: 1000 users/minute/door
Integrations: 200+ CCTV/Alarm systems
Cost: $150-800/door installed
MTBF: 1M+ cycles

Enterprise Features

  • Doors: 1-100,000+ scalable.
  • Logs: 100% audit, tamper-proof.
  • Anti-Passback: Prevents tailgating.
  • Geofencing: Zone/time blocking.
  • Compliance: GDPR, ISO 27001, UL 294.

Key Advantages

  • Security: 99.99% intruder rejection (biometric).
  • ROI: Recovers in 18 months (70% guard reduction).
  • Total Audit: Instant forensic reports.
  • Cashless: Eliminates physical keys.
  • Integration: One-card entire campus.

Challenges

  • Privacy: Strict biometric regulations.
  • False Positives: Lighting affects facial.
  • Downtime: Fail-safe vs. fail-secure debate.
  • Legacy: Old system migration.

2025+ Trends

  • Touchless: 100% contactless (facial + mobile).
  • Zero Trust Access: Continuous MFA + behavior.
  • Edge Processing: Autonomous controllers.
  • Blockchain Logs: Immutable audit.
  • 5G Long Range: Barrier-free parking.

Implementation Checklist

✅ Site survey + 100% coverage
✅ Fail-safe/secure per door defined
✅ OSDP v2 on all communications
✅ Dual power + 24h backup
✅ Anti-passback + tailgate detection
✅ CCTV integration verified
✅ Training + user onboarding

In summary, Access Control is the gateway to modern security: 90% enterprises adopt multi-factor in 2025 (Gartner). Success formula: OSDP + Biometric + Cloud + Zero Trust. Total control from $10/door/month!

Control de Acceso

Access Control (Control de Acceso) son sistemas integrados de seguridad física que autorizan, registran y restringen el paso de personas/vehículos a edificios, salas, zonas restringidas mediante credenciales biométricas, tarjetas, móviles y PIN. Garantizan cumplimiento normativo, auditoría total y respuesta ante intrusiones. Mercado global: $18 billones en 2025 (MarketsandMarkets).Tipos Principales de Access ControlClasificados por tecnología y aplicación:

Tipo
Tecnología
Tiempo Respuesta
Costo por Puerta
Uso Ideal
Tarjetas RFID
MIFARE, EM4100
<1s
$50-150
Edificios corporativos
Biométrico
Huella, facial, iris, vena
<0.5s
$300-1000
Alta seguridad, data centers
Móvil/Bluetooth
NFC, BLE, Apple Wallet
<1s
$100-300
Oficinas modernas, coworking
PIN/Keypad
Teclado numérico
<1s
$30-100
Bajo costo, residencial
Long Range
UHF 433MHz, 10-50m
<0.3s
$500-2000
Parkings, portones industriales
Multi-Factor
Bio + PIN + Mobile
<1s
$500-1500
Bancos, gobiernos

Tecnologías Clave

Tecnología
Estándar
Alcance Máx.
Ventajas
MIFARE DESFire
ISO 14443
5cm
Encriptación AES128, anti-clon
BLE 5.0
Bluetooth Low Energy
10m
Tap & Go móvil, geofencing
Facial 3D
IR + RGB
1-3m
99.99% accuracy, anti-spoofing
Vein Pattern
Infrarrojo
5cm
100% único, no contacto
PoE/IP
IEEE 802.3af/at
100m
Un cable: data + power

Componentes del Sistema Típico

ARQUITECTURA ENTERPRISE (1000+ Puertas)
├── Controladores: 2-door PoE IP (2Wiegand)
├── Lectores: Multi-tech (RFID + BLE + PIN)
├── Cerraduras: Eléctricas/magnéticas 500kg
├── Software: Cloud/On-premise VMS
├── Base Datos: 10M+ credenciales
└── Integración: CCTV, Alarmas, HVAC

Protocolos y Estándares

Estándar
Función
Cumplimiento
Wiegand 26/34
Comunicación lector-controlador
Universal legacy
OSDP v2
Encriptado + bidireccional
Anti-tampering, futuro-proof
ONVIF Access
Interoperabilidad IP
Axis, HID, Paxton
FIPS 201
PIV/Government cards
Seguridad nacional

Proveedores Líderes

Categoría
Marcas Top
Fortalezas
Enterprise
HID Global, LenelS2, Genetec
Escalabilidad 100K+ puertas
Biométrico
Suprema, ZKTeco, IDEMIA
Anti-spoofing IA, multi-modal
Cloud
Brivo, Kisi, Swiftlane
Zero hardware, mobile-first
Hardware
ASSA ABLOY, Allegion, dormakaba
Cerraduras high-security

Especificaciones Típico 2025 (Sistema 500 Puertas)

Controladores: IP PoE, OSDP v2 encrypted
Lectores: Multi-tech BLE + Facial 99.99%
Base Datos: 5M usuarios, 10 años logs
Throughput: 1000 usuarios/minuto/puerta
Integraciones: 200+ CCTV/Alarm systems
Costo: $150-800/puerta instalado
MTBF: 1M+ ciclos

Características Empresariales

  • Puertas: 1-100,000+ escalable.
  • Logs: 100% auditoría, tamper-proof.
  • Anti-Passback: Previene tailgating.
  • Geofencing: Bloqueo por zona/hora.
  • Cumplimiento: GDPR, ISO 27001, UL 294.

Ventajas Clave

  • Seguridad: 99.99% rechazo intrusos (biométrico).
  • ROI: Recupera en 18 meses (reduce guardias 70%).
  • Auditoría Total: Reportes forenses instantáneos.
  • Cashless: Elimina llaves físicas.
  • Integración: One-card para todo campus.

Desafíos

  • Privacidad: Regulaciones biométricos estrictas.
  • Falsos Positivos: Iluminación afecta facial.
  • Downtime: Fail-safe vs. fail-secure debate.
  • Legacy: Migración sistemas antiguos.

Tendencias 2025+

  • Touchless: 100% sin contacto (facial + mobile).
  • Zero Trust Access: MFA continua + comportamiento.
  • Edge Processing: Controladores autónomos.
  • Blockchain Logs: Auditoría inmutable.
  • 5G Long Range: Parkings sin barreras.

Checklist de Implementación

✅ Site survey + cobertura 100%
✅ Fail-safe/secure por puerta definido
✅ OSDP v2 en todas comunicaciones
✅ Dual power + backup 24h
✅ Anti-passback + tailgate detection
✅ Integración CCTV verificada
✅ Training + user onboarding

En resumen, Access Control es la puerta de entrada a seguridad moderna: 90% empresas adoptan multi-factor en 2025 (Gartner). Fórmula éxito: OSDP + Biométrico + Cloud + Zero Trust. ¡Control total desde $10/puerta/mes!
